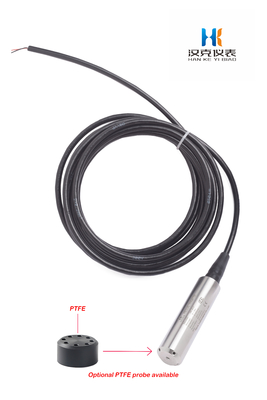

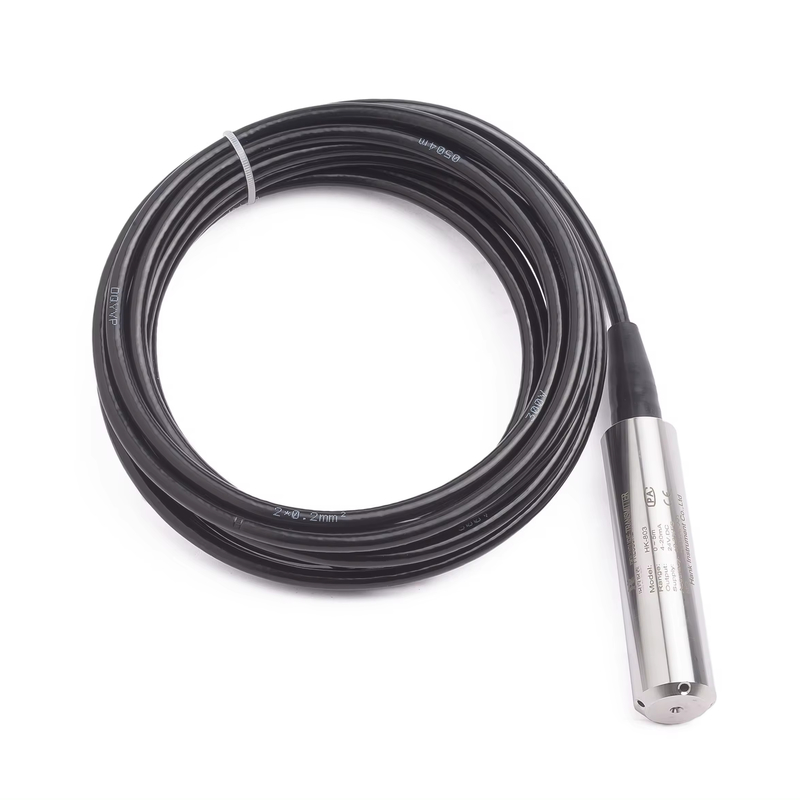

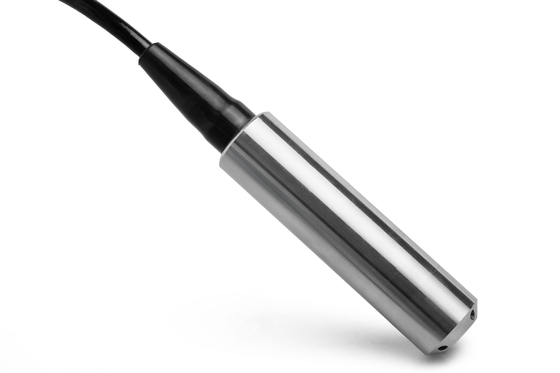

Hank HK-802FS Integrated Submersible Level Transmitter High-precision Waterproof IP68 Pressure Transmitter

Large Image : Hank HK-802FS Integrated Submersible Level Transmitter High-precision Waterproof IP68 Pressure Transmitter

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	hanke
Certification:	CE, Ex ia IIC T6 Ga
Model Number:	HK-802FS

Contact Now

Detailed Product Description

Warranty:	24 Months	Customized Support:	OEM, ODM, OBM
Product Name:	Submersible Level Transmitter	Pressure Range:	0-0.5m...500m
Accuracy:	±0.5%FS/±0.25%FS/±0.1%FS (customized)	Output Signal:	4-20mA/0-5V/0-10V/0.5-4.5V/RS485
Power Supply:	12-36VDC/24VDC/	Material:	Full Stainless Steel
Working Temp Range:	-40℃~+80℃	Process Connection:	≤10ms
Electrical Connection:	Fixed Cable And Water Proof IP68

Product Description

Specification

Performance parameters	pressure transmitter
Model	HK-802FS
Power supply	12-36V/12VDC/5VDC
Output signals	4-20mA+（HART）,0-20mA,0-5V,0-10V,RS485 optional
Measurement range	0-500m （ customizable）
Compensation temperature	-10~70 ° C
Storage temperature	-40~125 ° C
Medium temperature	-40-90°C
Shell protection	IP68 Optional
Comprehensive accuracy	0.5% FS/0.3% FS/0.2%FS/0.1% FS optional
Zero temperature drift	±0.03% F.S/C
Sensitivity temperature drift	±0.03% F.s/C
Overload pressure	200% F.S
Long term stability	± 0.2% F.S/y
Natural frequency	5kHz~650kHz
Electrical connection	Fixed cable with ventilation duct and waterproof IP68
Measurement medium	Oil, water and other liquids compatible with 316L stainless steel fluids

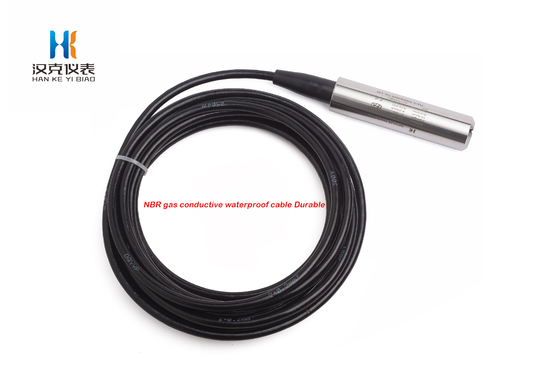

Cable optional	PE cable (waterproof); PU cable (oil/oil proof); FEP cable (anti-corrosion)

Q: Are you a manufacturer or trading company? Answer: We are a 20-year professional manufacturer of pressure/differential pressure/level/temperature transmitters with 4~20mA, Hart, Profibus and FF protocols, with SPI, I2C, 4~20mA, 0.5~4.5V, 0 -5V, 0-10V, RS485 and other output signals can be customized, as well as pressure controllers for control. We provide high-quality products and services with a two-year warranty. Q: What is your quality control system? Answer: As an ISO9001:2015 certified manufacturer, we have a strict quality control system, and each product has undergone fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed. Q: Can I get samples? A: Yes, we have materials in stock to help you get samples as soon as possible. Q: Do you have a minimum order quantity for your products? A: We have no MOQ limit and can accept 1 pc for testing purpose. Q: Can we print our logo on the product? Do you offer customized products? A: Yes, we can print your logo on our products; OEM, ODM and customization are welcome. Q: Can you give me the shortest delivery time? We have materials in stock, if you really need it, you can tell us and we will try our best to satisfy you. Q: Can I visit your factory? A: Of course, we will help you visit our factory if you need. Q: How to get a quote or send an inquiry to? A: Send us your inquiry via the inquiry on the right or bottom of this page.
