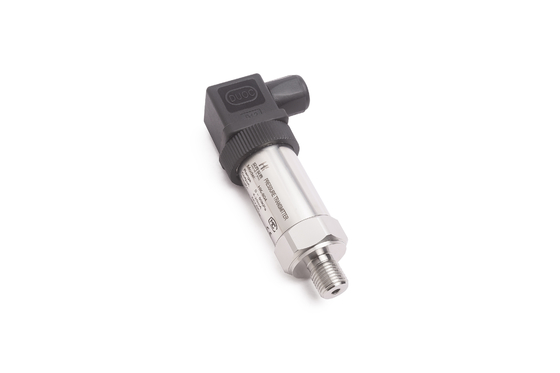

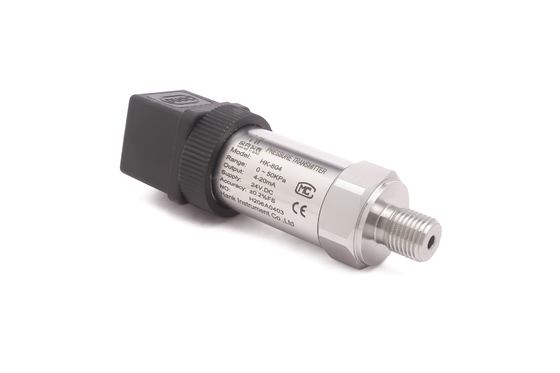

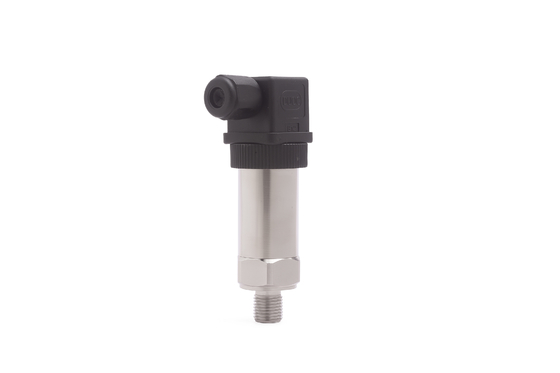

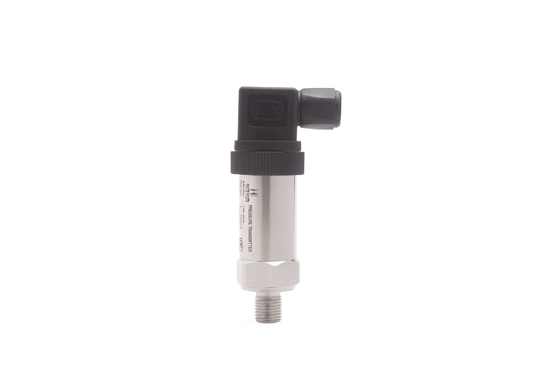

Hank HK-804 Pressure Monitoring Sensors 30Psi Pressure Transmitter 4-20ma

Large Image : Hank HK-804 Pressure Monitoring Sensors 30Psi Pressure Transmitter 4-20ma

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	hanke
Certification:	CE
Model Number:	HK-804

Contact Now

Detailed Product Description

Warranty:	24 Months	Customized Support:	OEM, ODM, OBM
Output:	4-20mA(2 Wires)/0-5V/0-10V/0.5-4.5V	Overload:	150% F.S.
Burst Pressure:	200% F.S.	Working Temp:	-20℃~+80℃
Power Supply:	12-36VDC/24VDC/5V	Net Weight:	0.25KG

Product Description

HK-801M4 pressure transmitter is composed of an isolated OEM silicon piezoresistive pressure sensing element encapsulated in a stainless steel shell. The aluminum alloy shell and stainless steel joint have high strength, good dielectric compatibility, stable and reliable performance, and high accuracy. The pressure interface is an industrial standard thread, with a sealing gasket end face seal, suitable for pressure measurement of various dynamic and static gas liquids. This product is widely used in process control and measurement in industries such as petroleum, chemical, metallurgy, aviation, aerospace, medical equipment, vehicles, refrigerators, compressors, etc. The company can customize OEM according to customer requirements. Undertake products with special structural dimensions and high temperature resistance requirements. The company has a mature batch production line that can complete production tasks in a timely and high-quality manner.

Specification

Performance parameters	2088 shell pressure transmitter
Model	HK-801M4
Power supply	12-36V power supply
Output signals	4-20mA, 1-5V, 0-20mA, 0-5V, 0-10V, RS485
Measurement range	any range within -0.1~100MPa
Compensation temperature	-10~70 ° C
Storage temperature	-40~125 ° C
Medium temperature	-20-90 ° C
Shell protection	IP65
Pressure type	gauge pressure, absolute pressure, sealing pressure
Comprehensive accuracy	0.1% FS, 0.2% FS, 0.3% FS, 0.5% FS optional
Zero temperature drift	±0.03% F.S/C
Sensitivity temperature drift	±0.03% F.s/C
Overload pressure	200% F.S
Long term stability	± 0.2% F.S/y
Natural frequency	5kHz~650kHz
Electrical connection	waterproof joint, stainless steel explosion-proof joint
Measurement medium	oil, water, gas, and other compatible media with 316Lstainless steel
Process connection	threaded connection（G1/4，G1/2etc.）/sanitary diaphragm /connection/flange connection (customizable)

Q:What kind of products do you offer? Answer: We provide pressure sensors, liquid level sensors, flow meters and digital controllers. The main markets are European countries, the United States, the Middle East and Asia. The certificate is an international certificate.

Q: Can I get samples? Yes, we have materials in stock to help you get samples as soon as possible. Q: What is the quality of the magnets? Answer: We have certifications for ISO, European standard ATEX, tuv-ce and ROSH, and we can send our company's certification tests to you. Q: Can you give me the shortest delivery time? We have materials in stock, if you really need it, you can tell us and we will try our best to satisfy you. Q: Can I visit your factory? A: Of course, we will help you visit our factory if you need. Q: How to get a quote or send an inquiry to? A: Send us your inquiry via the inquiry on the right or bottom of this page. : What kind of products do you offer? Answer: We provide pressure sensors, liquid level sensors, flow meters and digital controllers. The main markets are European countries, the United States, the Middle East and Asia. The certificate is an international certificate. Q: Can I get samples? Yes, we have materials in stock to help you get samples as soon as possible. Q: What is the quality of the magnets? Answer: We have certifications for ISO, European standard ATEX, tuv-ce and ROSH, and we can send our company's certification tests to you. Q: Can you give me the shortest delivery time? We have materials in stock, if you really need it, you can tell us and we will try our best to satisfy you. Q: Can I visit your factory? A: Of course, we will help you visit our factory if you need. Q: How to get a quote or send an inquiry to? A: Send us your inquiry via the inquiry on the right or bottom of this page.
