Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter

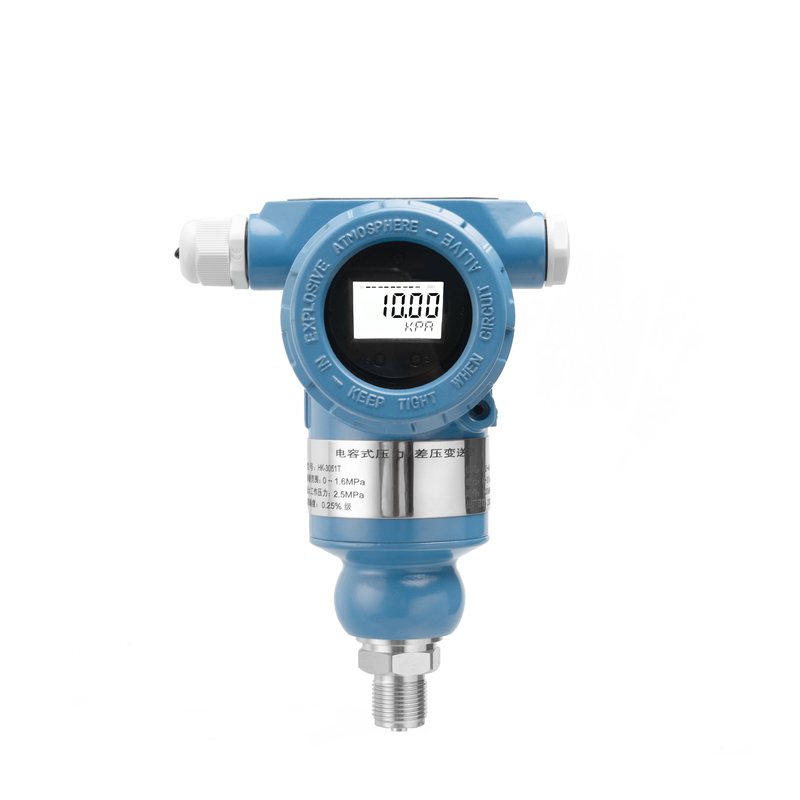

Large Image : Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	hanke
Certification:	CE CPA Ex
Model Number:	HK-8051T

Contact Now

Detailed Product Description

Warranty:	24 Months	Customized Support:	OEM, ODM, OBM
Product Name:	Hank Intelligent 3051T Pressure Transmitter	Pressure Range:	-0.1~0~0.1~1000Bar (option)
Pressure Type:	Gauge; Absolute; Negative, Sealed Gauge Pressure Optional	Medium Compatible:	Compatible With 316L Stainless Steel
Power Supply:	24 V DC Or 12~36 V DC	Output:	4-20 MA+Hart
Response Time:	≤10 Ms	Workingtemp:	-30℃~85℃
Specification:	Water Pipe Pressure Sensor

Product Description

Specification

Performance parameters	2088 shell pressure transmitter
Model	HK-801M4
Power supply	12-36V power supply
Output signals	4-20mA, 1-5V, 0-20mA, 0-5V, 0-10V, RS485
Measurement range	any range within -0.1~100MPa
Compensation temperature	-10~70 ° C
Storage temperature	-40~125 ° C
Medium temperature	-20-90 ° C
Shell protection	IP65
Pressure type	gauge pressure, absolute pressure, sealing pressure
Comprehensive accuracy	0.1% FS, 0.2% FS, 0.3% FS, 0.5% FS optional
Zero temperature drift	±0.03% F.S/C
Sensitivity temperature drift	±0.03% F.s/C
Overload pressure	200% F.S
Long term stability	± 0.2% F.S/y
Natural frequency	5kHz~650kHz
Electrical connection	waterproof joint, stainless steel explosion-proof joint
Measurement medium	oil, water, gas, and other compatible media with 316Lstainless steel
Process connection	threaded connection（G1/4，G1/2etc.）/sanitary diaphragm /connection/flange connection (customizable)

Q:What kind of products do you offer? Answer: We provide pressure sensors, liquid level sensors, flow meters and digital controllers. The main markets are European countries, the United States, the Middle East and Asia. The certificate is an international certificate.

Q: Can I get samples? Yes, we have materials in stock to help you get samples as soon as possible. Q: What is the quality of the magnets? Answer: We have certifications for ISO, European standard ATEX, tuv-ce and ROSH, and we can send our company's certification tests to you. Q: Can you give me the shortest delivery time? We have materials in stock, if you really need it, you can tell us and we will try our best to satisfy you. Q: Can I visit your factory? A: Of course, we will help you visit our factory if you need. Q: How to get a quote or send an inquiry to? A: Send us your inquiry via the inquiry on the right or bottom of this page. : What kind of products do you offer? Answer: We provide pressure sensors, liquid level sensors, flow meters and digital controllers. The main markets are European countries, the United States, the Middle East and Asia. The certificate is an international certificate. Q: Can I get samples? Yes, we have materials in stock to help you get samples as soon as possible. Q: What is the quality of the magnets? Answer: We have certifications for ISO, European standard ATEX, tuv-ce and ROSH, and we can send our company's certification tests to you. Q: Can you give me the shortest delivery time? We have materials in stock, if you really need it, you can tell us and we will try our best to satisfy you. Q: Can I visit your factory? A: Of course, we will help you visit our factory if you need. Q: How to get a quote or send an inquiry to? A: Send us your inquiry via the inquiry on the right or bottom of this page.
