Hank Installing a Heat Sink to Measure High and Low Temperature Media

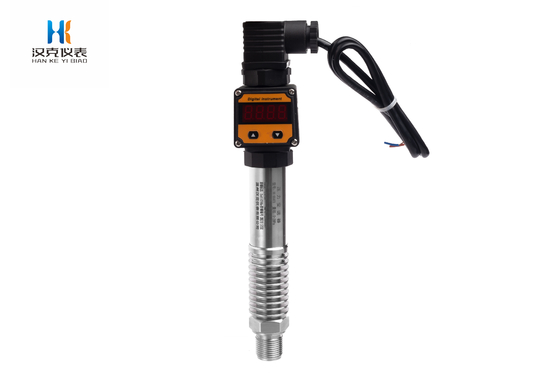

Large Image : Hank Installing a Heat Sink to Measure High and Low Temperature Media

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	hanke
Certification:	Full stainless steel
Model Number:	HK-804TC

Contact Now

Detailed Product Description

Warranty:	24 Months	Customized Support:	OEM, ODM, OBM
Pressure Range:	-1...0-1...600 Bar	Accuracy:	0.5%FS
Output Signal:	4-20mA/0-5V/0-10V/0.5-4.5V	Process Connection:	G1/2", G1/4",1/4" NPT, 1/8" NPT Customizable
Power Supply:	12-36VDC/24VDC/	Pressure Type:	Gauge, Absolute
IP Rating:	IP65...IP68 By Model	Working Temp Range:	-20℃~+80℃
Electronic Connection:	Hirschmann/M12*4pin/directly Cable/Packard

Product Description

Specification

Performance parameters	pressure transmitter
Model	HK-804
Power supply	12-36V power supply
Output signals	4-20mA+（HART）,0-20mA,0-5V,0-10V,RS485 optional
Measurement range	-1Bar - 0 -1Bar - 1000Bar （ customizable）
Compensation temperature	-10~70 ° C
Storage temperature	-40~125 ° C
Medium temperature	-20-90 ° C （Installing a heat sink to measure high and low temperature media）
Shell protection	IP65 /IP68 Optional
Pressure type	gauge pressure, absolute pressure, sealing pressure
Comprehensive accuracy	0.5% FS/0.3% FS/0.2%FS/0.1% FS optional
Zero temperature drift	±0.03% F.S/C
Sensitivity temperature drift	±0.03% F.s/C
Overload pressure	200% F.S
Long term stability	± 0.2% F.S/y
Natural frequency	5kHz~650kHz
Electrical connection	waterproof joint, stainless steel explosion-proof joint
Measurement medium	oil, water, gas, and other compatible media with 316Lstainless steel
Process connection	threaded connection（G1/4，G1/2etc.）/sanitary diaphragm /connection/flange connection (customizable)

Q: Are you a manufacturer or trading company? Answer: We are a 20-year professional manufacturer of pressure/differential pressure/level/temperature transmitters with 4~20mA, Hart, Profibus and FF protocols, with SPI, I2C, 4~20mA, 0.5~4.5V, 0 -5V, 0-10V, RS485 and other output signals can be customized, as well as pressure controllers for control. We provide high-quality products and services with a two-year warranty. Q: What is your quality control system? Answer: As an ISO9001:2015 certified manufacturer, we have a strict quality control system, and each product has undergone fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed. Q: Can I get samples? A: Yes, we have materials in stock to help you get samples as soon as possible. Q: Do you have a minimum order quantity for your products? A: We have no MOQ limit and can accept 1 pc for testing purpose. Q: Can we print our logo on the product? Do you offer customized products? A: Yes, we can print your logo on our products; OEM, ODM and customization are welcome. Q: Can you give me the shortest delivery time? We have materials in stock, if you really need it, you can tell us and we will try our best to satisfy you. Q: Can I visit your factory? A: Of course, we will help you visit our factory if you need. Q: How to get a quote or send an inquiry to? A: Send us your inquiry via the inquiry on the right or bottom of this page.
