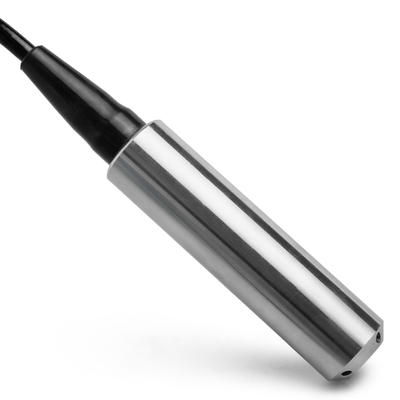

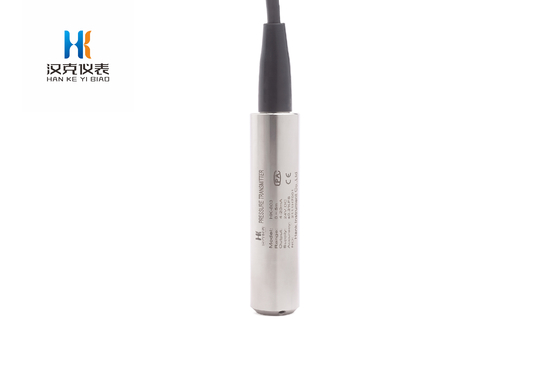

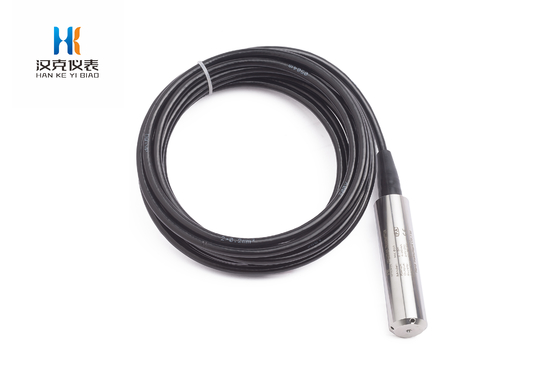

Hank OEM Fuel Level Monitoring HK-802 Fuel tank Level Pressure Sensor Analog Fuel Level Sensor 4-20mA

Large Image : Hank OEM Fuel Level Monitoring HK-802 Fuel tank Level Pressure Sensor Analog Fuel Level Sensor 4-20mA

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Hanke
Model Number:	HK-802-Y

Contact Now

Detailed Product Description

Warranty:	24 Months	Customized Support:	OEM, ODM, OBM
Pressure Range:	0...2m....500mH2O (option)	Material:	Stainless Steel
Power Supply:	24 V DC Or 12~36 V DC/12VDC/5VDC	Output:	4-20 MA(+HART), RS485,0-5V,0-10Voptional
Accuracy:	0.5%FS/0.3%FS/0.2%FS/0.1%FS	Ambient Temperature:	-20~80℃
Ex-proof:	Intrinsically Safe Ex-proof ExiaIICT6Ga	Protection:	IP68
Zero Drift:	±0.02%FS/°C	Overload Pressure:	200%FS

Specification

Performance parameters	IP68 Submersible liquid level sensor
Model	HK-802M4
Power supply	24V or 12-36V power supply
Output signals	4-20mA(+HART)、RS485、0-5V、0-10V optional
Measurement range	any range within 0...2m....200mH2O
Compensation temperature	-20~80 ° C
Storage temperature	-40~125 ° C
Shell protection	Probe IP68, junction box IP65
Comprehensive accuracy	±0.5% F.S, ±0.3%F.S，±0.25%F.S、±0.1%F.S（optional）
Zero temperature drift	±0.03% F.S/C
Sensitivity temperature drift	±0.03% F.s/C
Overload pressure	200% F.S
Long term stability	± 0.2% F.S/y
Natural frequency	5kHz~650kHz
Electrical connection	Waterproof joint/stainless steel explosion-proof joint
Measurement medium	Oil pressure, hydraulic pressure, (diaphragms can be customized for special media)

Q: Are you a manufacturer or trading company? Answer: We are a 20-year professional manufacturer of pressure/differential pressure/level/temperature transmitters with 4~20mA, Hart, Profibus and FF protocols, with SPI, I2C, 4~20mA+（HART）, 0.5~4.5V, 0 -5V, 0-10V, RS485 and other output signals can be customized, as well as pressure controllers for control. We provide high-quality products and services with a two-year warranty. Q: What is your quality control system? Answer: As an ISO9001:2015 certified manufacturer, we have a strict quality control system, and each product has undergone fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed. Q: Can I get samples? A: Yes, we have materials in stock to help you get samples as soon as possible. Q: Do you have a minimum order quantity for your products? A: We have no MOQ limit and can accept 1 pc for testing purpose. Q: Can we print our logo on the product? Do you offer customized products? A: Yes, we can print your logo on our products; OEM, ODM and customization are welcome. Q: Can you give me the shortest delivery time? We have materials in stock, if you really need it, you can tell us and we will try our best to satisfy you. Q: Can I visit your factory? A: Of course, we will help you visit our factory if you need. Q: How to get a quote or send an inquiry to? A: Send us your inquiry via the inquiry on the right or bottom of this page.
