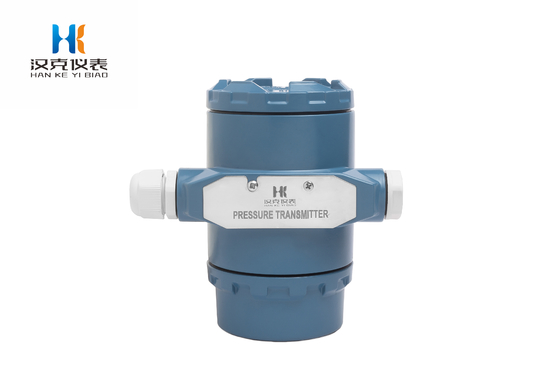

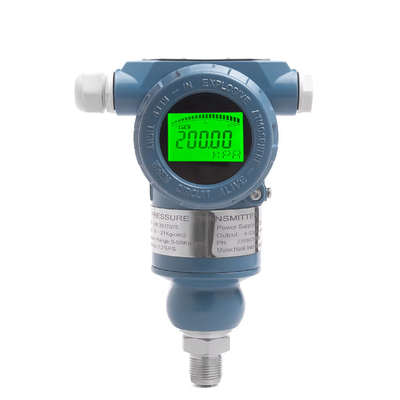

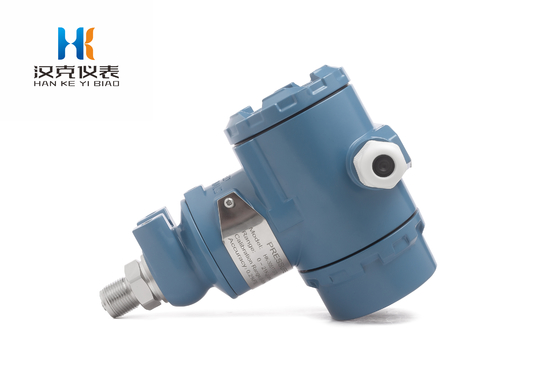

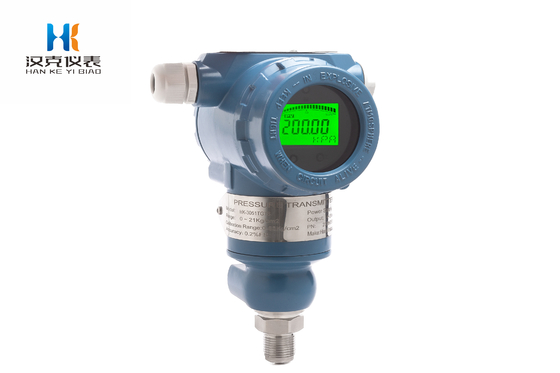

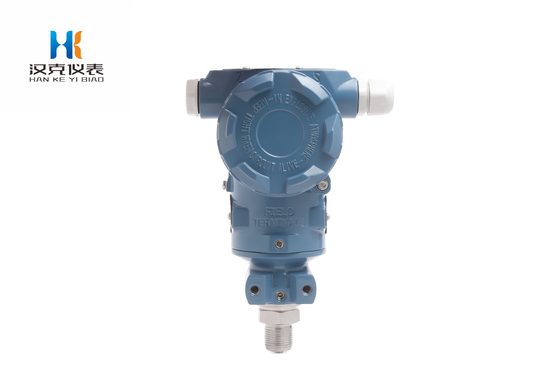

Hank Pressure Transmitter Explosion-proof Diffusion Silicon Smart Pressure Sensor 1.6mpa High Precision Measurement Transmitter

Large Image : Hank Pressure Transmitter Explosion-proof Diffusion Silicon Smart Pressure Sensor 1.6mpa High Precision Measurement Transmitter

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	hanke
Model Number:	HK-8051T

Contact Now

Detailed Product Description

Warranty:	24 Months	Customized Support:	OEM, ODM, OBM
Pressure Range:	-0.1~0~0.1~1600Bar (option)	Pressure Type:	Gauge; Absolute; Negative, Sealed Gauge Pressure Optional
Medium Compatible:	Compatible With 316L Stainless Steel	Power Supply:	24 V DC Or 12~36 V DC
Output:	4-20 MA(+HART), RS485 Optional	Response Time:	≤10 Ms
Accuracy:	0.25%FS/0.1%FS/0.075%FS	Specification:	Water Pipe Pressure Sensor
Ex-proof:	Intrinsically Safe Ex-proof ExiaIICT6Ga	Protection:	IP65

Specification

Performance parameters	8051T扩散硅智能压力变送器
Model	HK-8051T
Power supply	12-36V power supply
Output signals	4-20mA(+HART)、RS485 optional
Measurement range	any range within -1Bar..0..1..1600Bar
Compensation temperature	-10~70 ° C
Storage temperature	-40~125 ° C
Medium temperature	-20-90 ° C Can be customized to measure high-temperature media (heat sink installed)
Shell protection	IP67
Pressure type	gauge pressure, absolute pressure, sealing pressure
Comprehensive accuracy	±0.25% F.S, ±0.1%F.S，±0.075%F.S（optional）
Zero temperature drift	±0.03% F.S/C
Sensitivity temperature drift	±0.03% F.s/C
Overload pressure	200% F.S
Long term stability	± 0.2% F.S/y
Natural frequency	5kHz~650kHz
Electrical connection	Waterproof joint/stainless steel explosion-proof joint
Measurement medium	Oil pressure, hydraulic pressure, pneumatic pressure (diaphragms can be customized for special media)
Process connection	threaded connection（G1/4，G1/2etc.）/sanitary diaphragm connection /flange connection (customizable)

Q: Are you a manufacturer or trading company? Answer: We are a 20-year professional manufacturer of pressure/differential pressure/level/temperature transmitters with 4~20mA, Hart, Profibus and FF protocols, with SPI, I2C, 4~20mA+（HART）, 0.5~4.5V, 0 -5V, 0-10V, RS485 and other output signals can be customized, as well as pressure controllers for control. We provide high-quality products and services with a two-year warranty. Q: What is your quality control system? Answer: As an ISO9001:2015 certified manufacturer, we have a strict quality control system, and each product has undergone fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed. Q: Can I get samples? A: Yes, we have materials in stock to help you get samples as soon as possible. Q: Do you have a minimum order quantity for your products? A: We have no MOQ limit and can accept 1 pc for testing purpose. Q: Can we print our logo on the product? Do you offer customized products? A: Yes, we can print your logo on our products; OEM, ODM and customization are welcome. Q: Can you give me the shortest delivery time? We have materials in stock, if you really need it, you can tell us and we will try our best to satisfy you. Q: Can I visit your factory? A: Of course, we will help you visit our factory if you need. Q: How to get a quote or send an inquiry to? A: Send us your inquiry via the inquiry on the right or bottom of this page.
